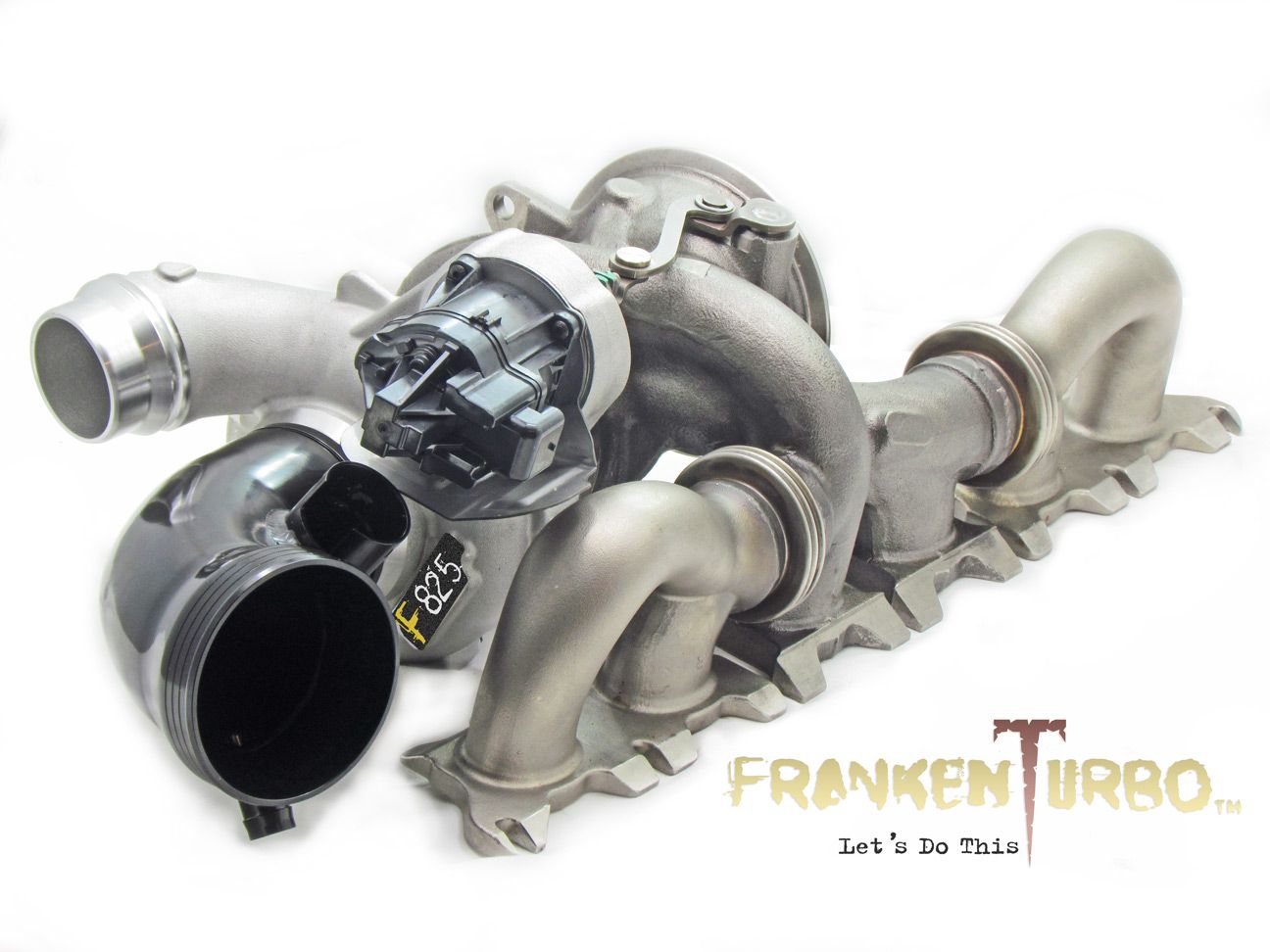

62mm/62mm Twin-scroll Hybrid Turbocharger for Generation 1 BMW B58 with Electronic Wastegate Actuator and Matching Inlet Pipe

• Includes free upgraded inlet pipe
• FrankenTurbo-exclusive turbine housing with oversized section material thickness, allowing for largest available turbine rotor in a stock Area/Ratio turbo
• Calibrated actuator included, with option to delete
• 5+5 splitter blade 68/62mm Inconel Turbine rotor
• 62/78(88) point-milled 7+7 aluminum billet compressor wheel (88mm at extended tips)
• 42CrMo High-strength rotor shaft Up-rated from 5.8mm to 6.5mm
• Heavy-duty Increased Surface Area 360˚ Thrust Bearing Assembly
• Vanadium alloy cast iron turbine housing/manifold(1000˚ c)
• Designed in the USA & Manufactured to Meet or Exceed OEM Specs
• Turbo Technics Vibration Sorting Rig balanced
• 2-year limited warranty

F-series fitment:

G-series fitment:
